Marine Anti-Wave Valve / Marine Storm Valve

Marine Anti-Wave Valve / Marine Storm Valve

Marine Anti-Wave Valve / Marine Storm Valve Featured Image
  • Marine Anti-Wave Valve / Marine Storm Valve

Short Description:

Body Material: ZG230-450 Cast Steel, ZCuPb5Sn5Zn5 Bronze

Normal Diameter: DN50 ~ DN150

Max Working Temperature: 80°C

Marine class approvals: CCS, ABS, DNV, LR, TÜV are available upon request.


Product Detail

Product Tags

Marine Anti-Wave Valve is designed to prevent seawater backflow caused by waves, rolling, and external water pressure, ensuring safe and reliable drainage from shipboard systems. Installed on overboard discharge pipelines, it automatically closes when external seawater pressure exceeds the internal pipeline pressure, effectively preventing flooding and protecting onboard equipment. Manufactured from corrosion-resistant marine-grade materials, the valve is widely used on commercial vessels, naval ships, offshore platforms, and marine engineering projects. Available with major marine classification approvals, it delivers dependable performance in harsh marine environments.

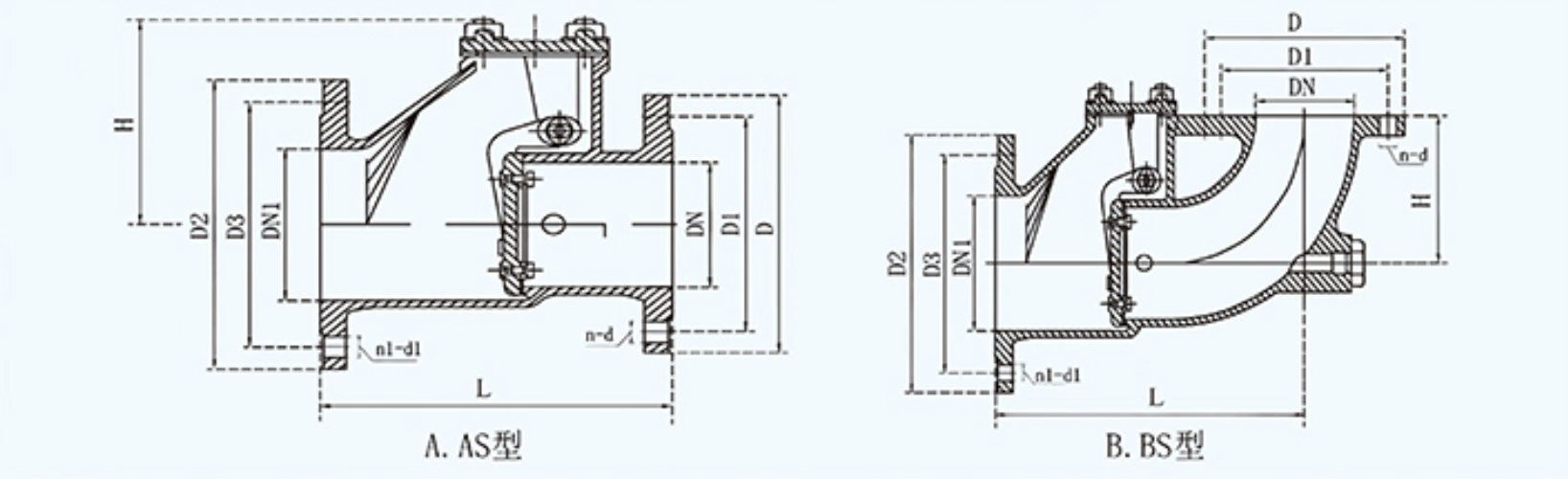

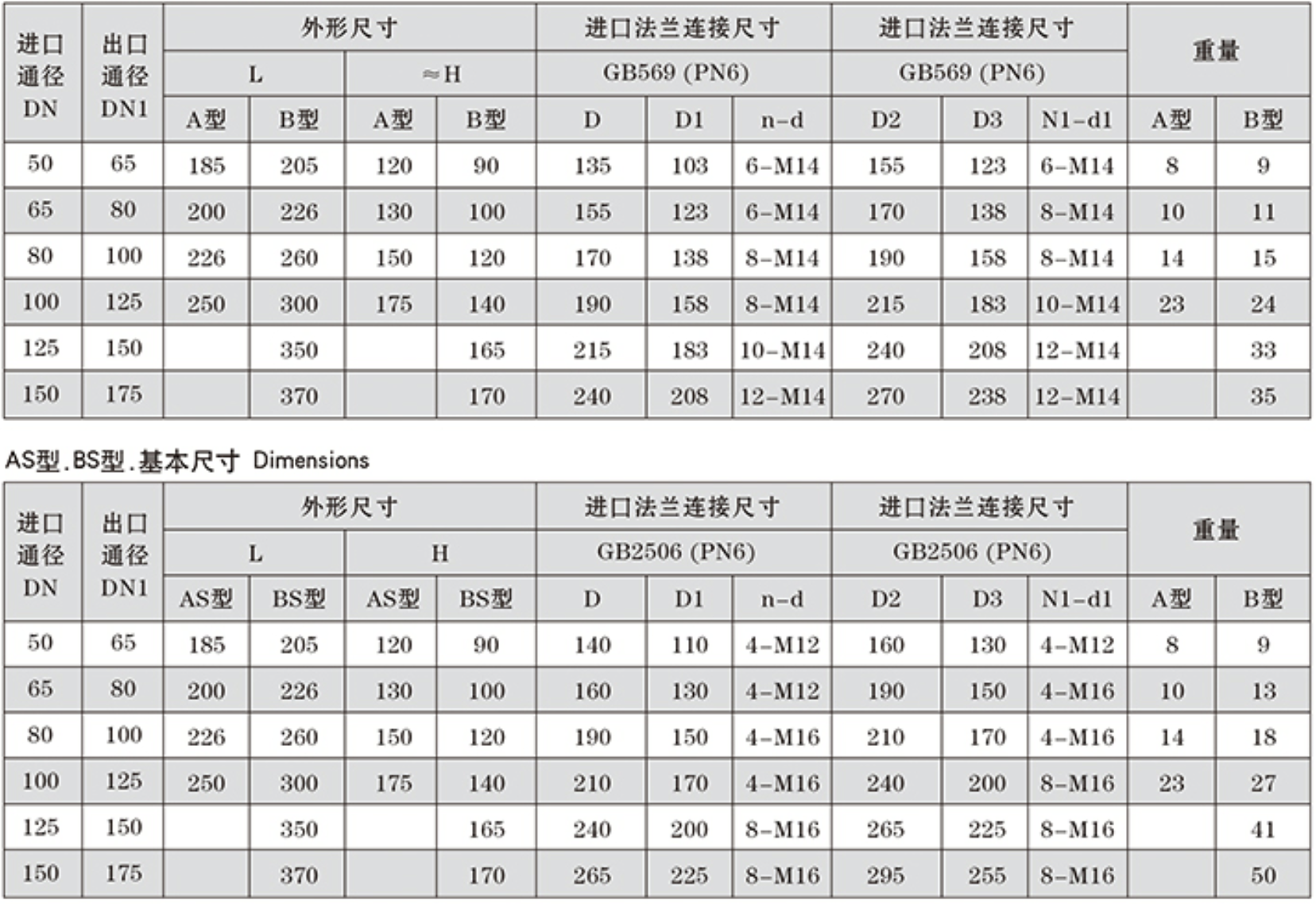

Marine Anti-Wave Valve / Marine Storm Valve CB/T3475

3475 3475-2

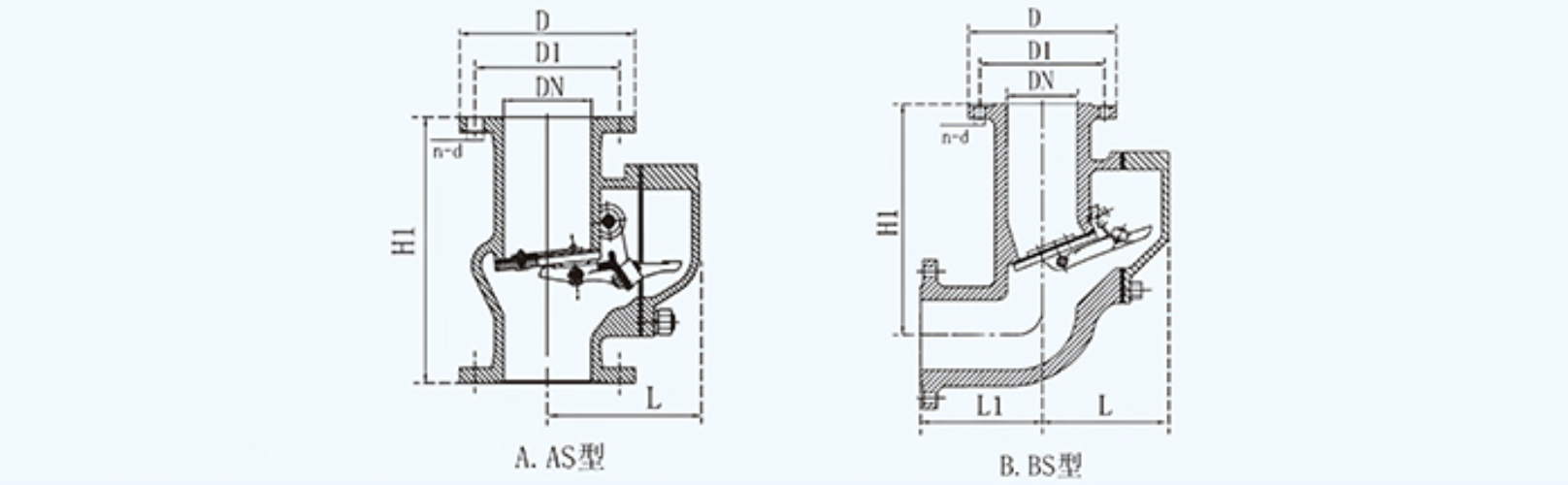

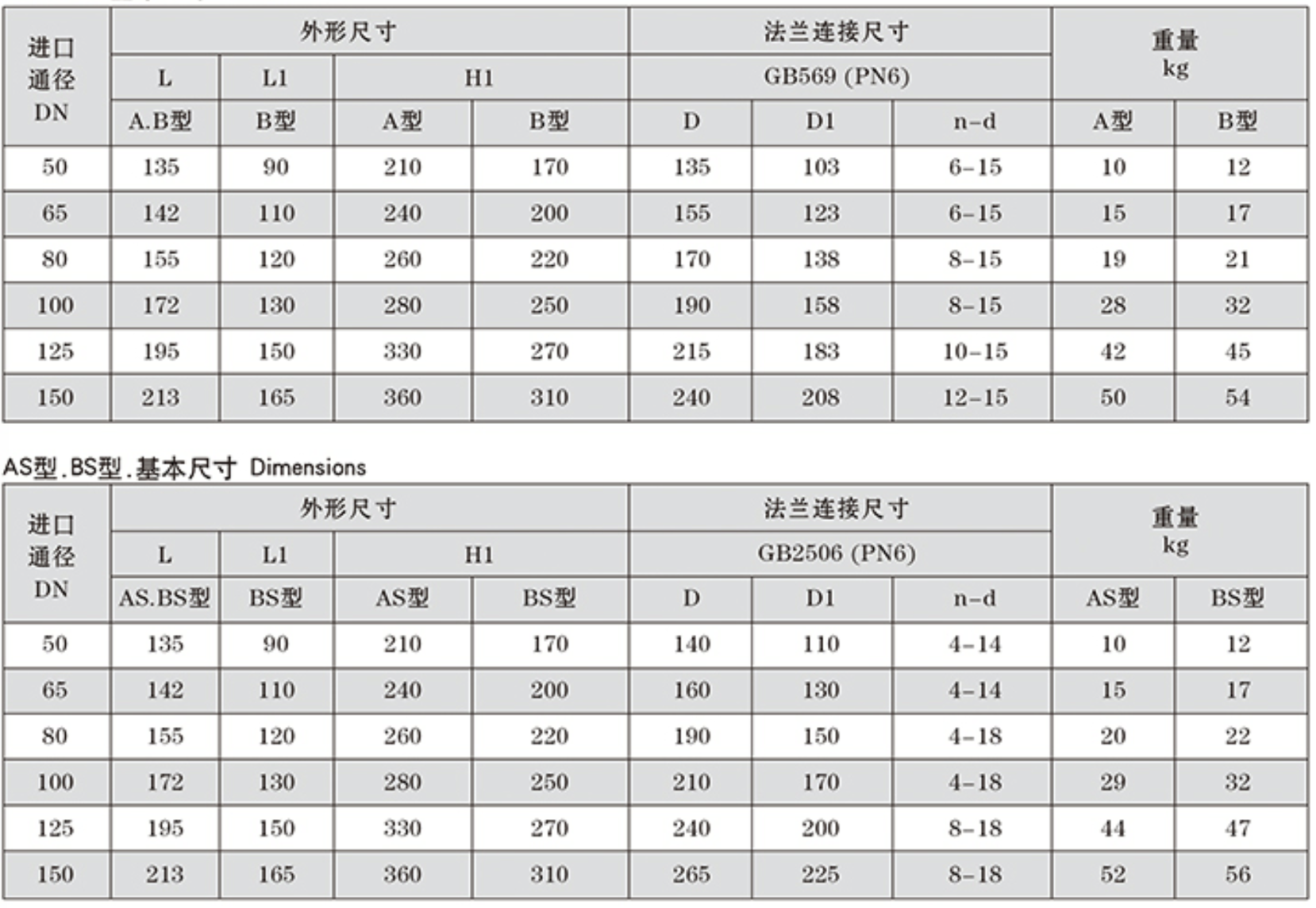

Marine Anti-Wave Valve / Marine Storm Valve CB/T3476

3476 3476-2

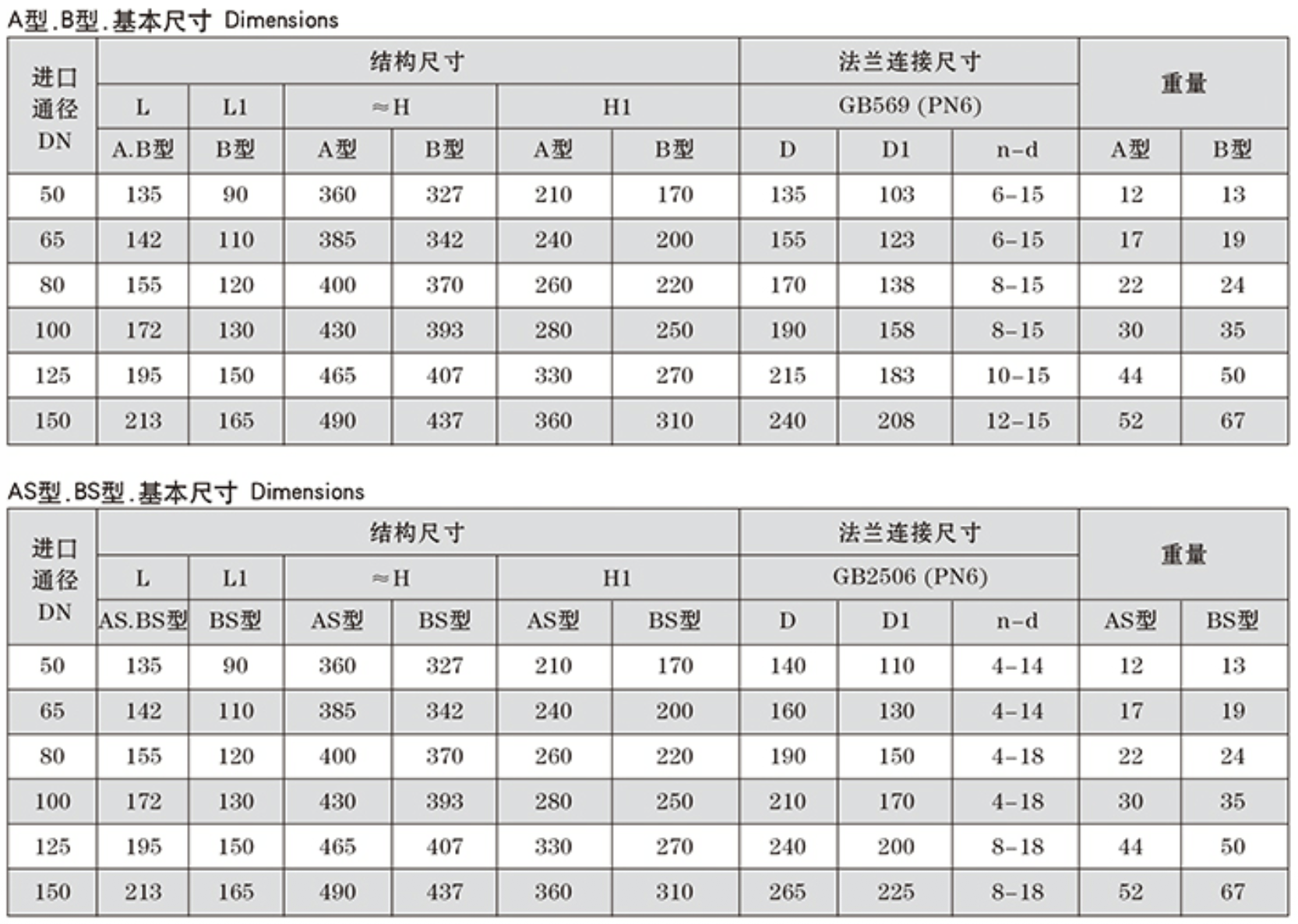

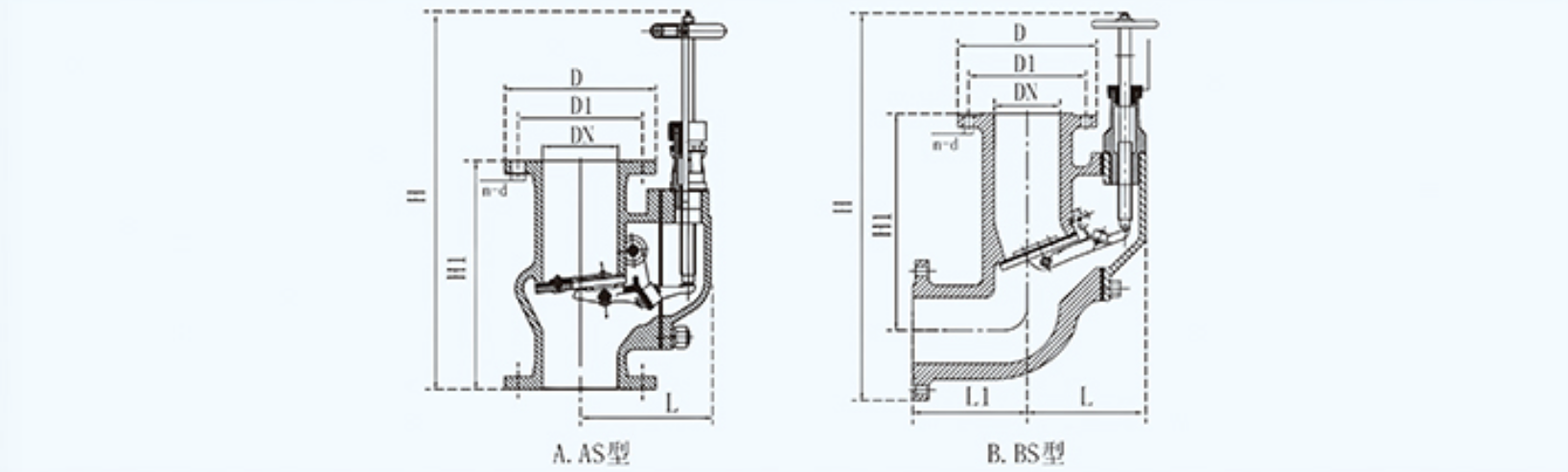

Marine Anti-Wave Valve / Marine Storm Valve CB/T3477

3477 3477-2



Product Features

Automatically prevents seawater backflow caused by waves and external water pressure.
Ensures reliable one-way discharge to protect shipboard piping systems.
Robust construction provides long service life in demanding marine environments.
Excellent corrosion resistance for seawater applications.
Low maintenance design with dependable automatic operation.
Flanged connection for secure installation and easy maintenance.
Factory tested for sealing performance, pressure resistance, and material traceability.

Applications

Suitable for a wide range of marine drainage and discharge systems, including:

Overboard Discharge Systems
Bilge Systems
Ballast Water Systems
Deck Drainage Systems
Scupper Drainage Systems
Engine Room Drainage
Seawater Drainage Systems
Commercial Ships
Naval Vessels
Offshore Platforms
Marine Engineering Projects
